Z Channel
Construction:

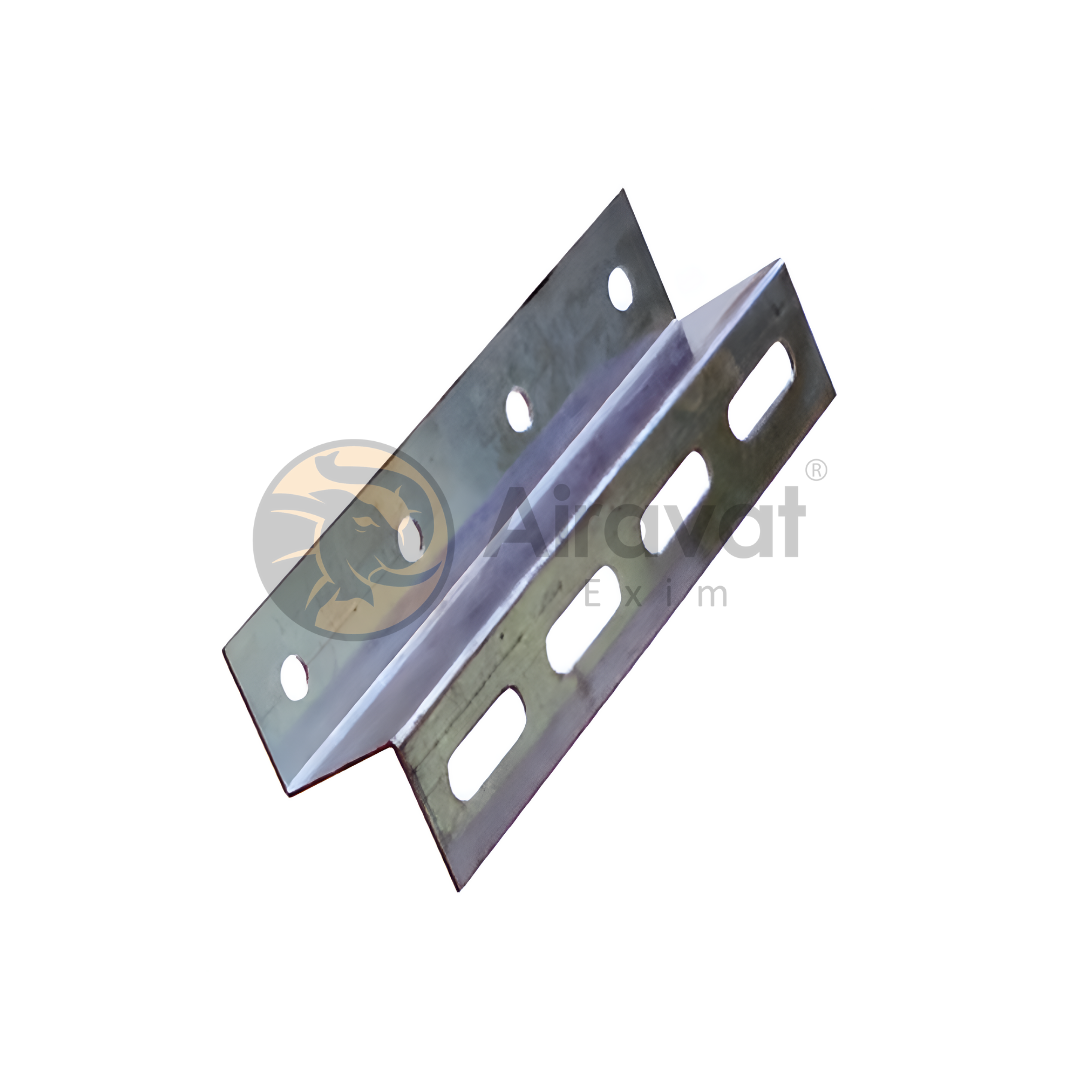

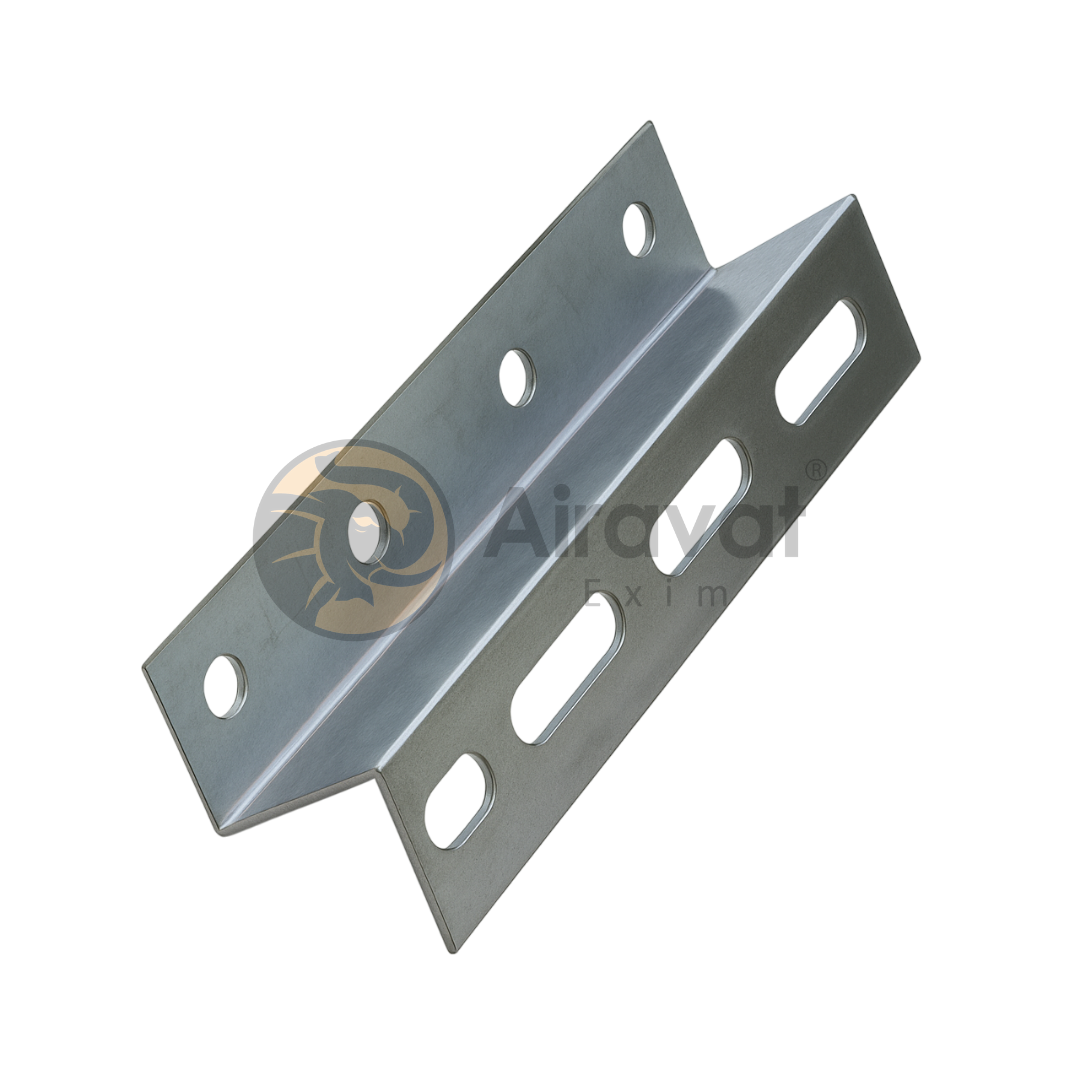

Manufactured from high-grade mild steel (Pre-Galvanised), Slotted Z Channels are formed into a Z-shaped profile with uniformly spaced slots along the length. These slots enable flexible mounting of clamps, brackets, or other support components. Available in various finishes to suit environmental conditions.
Usage:

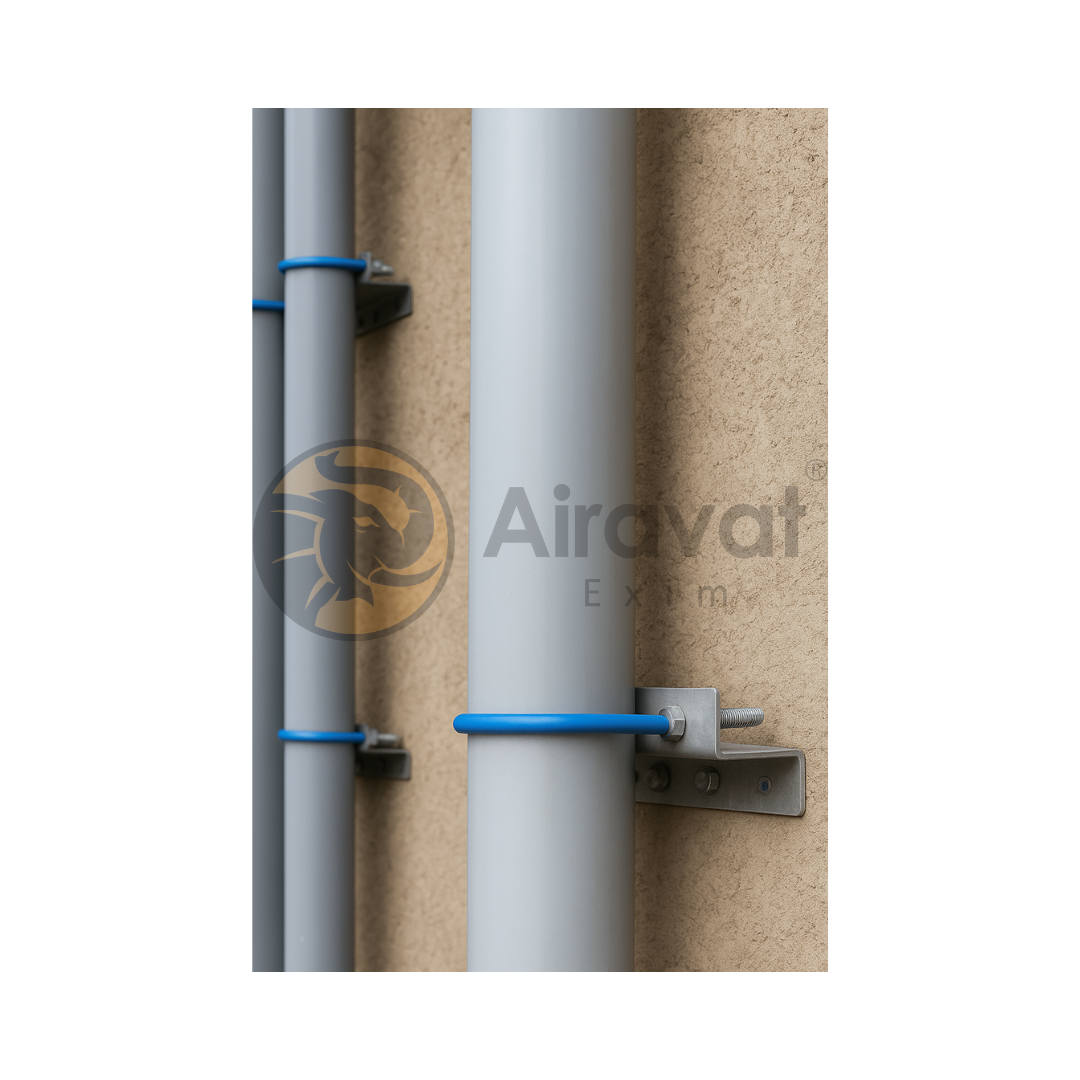

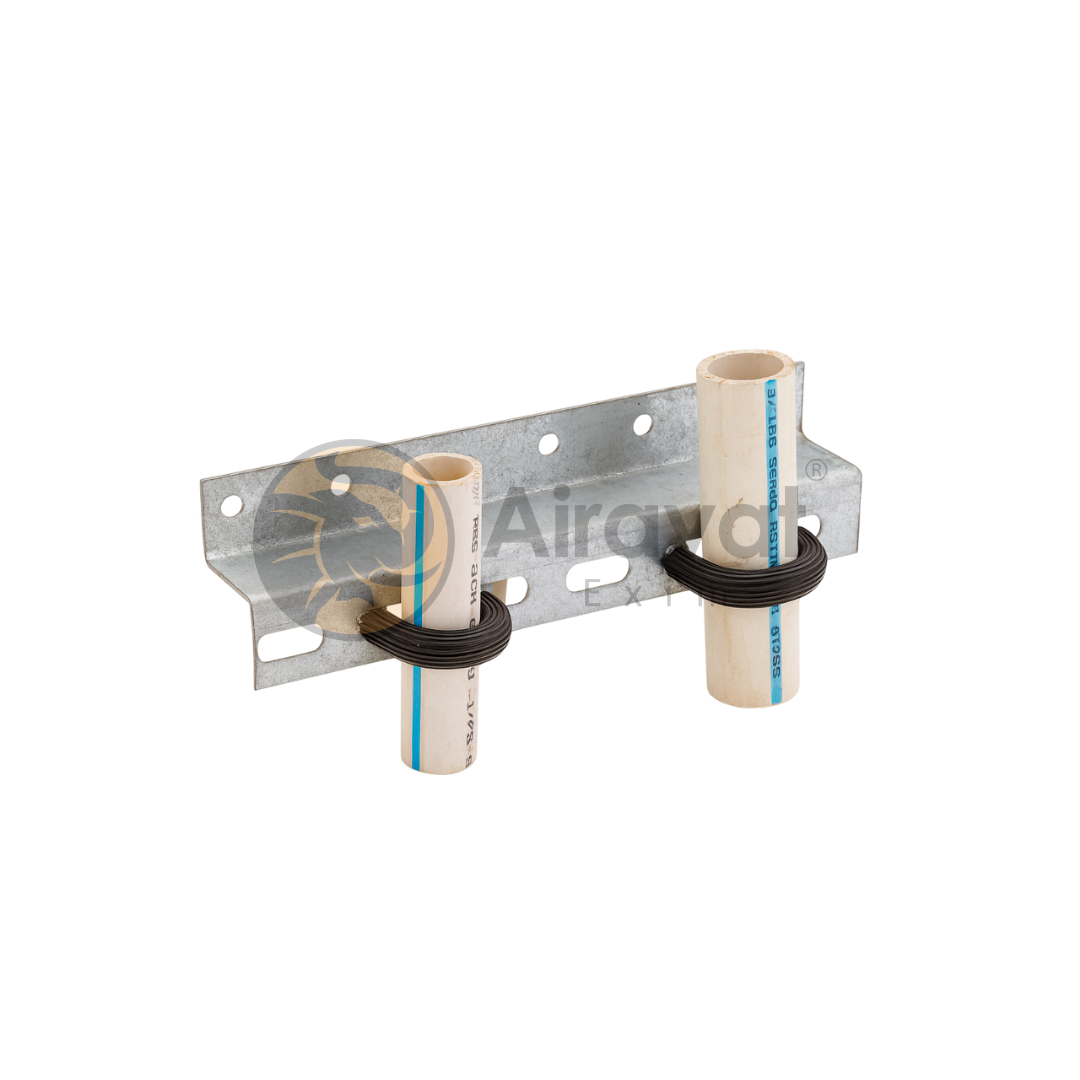

Slotted Z Channels are fixed on walls, ceilings, or floors using anchor fasteners. Pipe clamps, cable holders, or electrical components are mounted onto the channel using bolts and spring nuts. The slotted design ensures adjustable spacing and easy repositioning of mounted elements.
Application:
Slotted Z Channels are structural components used for mounting and supporting piping systems, electrical raceways, HVAC ducts, cable trays, and other mechanical assemblies. Commonly applied in industrial, commercial, and residential infrastructure projects.
| Material: | Mild Steel |
|---|---|
| Finish Options: | Pre-Galvanized |
| Thickness: | from 0.8mm to 2.2mm |
| Length: | Standard 2.5 meters – 8 ft. (can be customized) |
| Load Capacity: | Depends on profile and material thickness |
| Compliance: | Conforms to industry standards for structural supports |
| Features: | Corrosion-resistant and high-load bearing Quick and adjustable installation Compatible with multiple clamp types |
