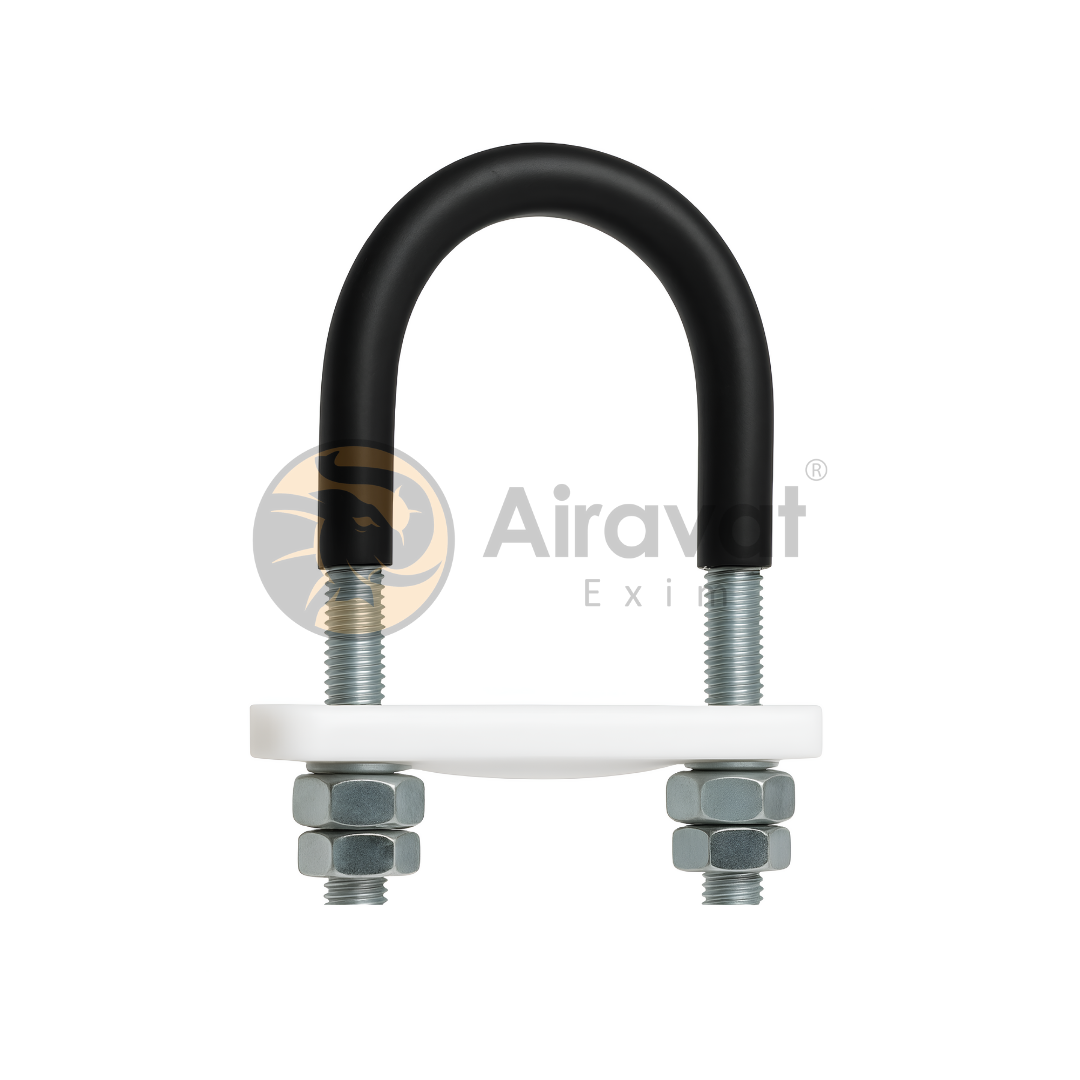

U bolt with insulated rubber along with Thermoplastic

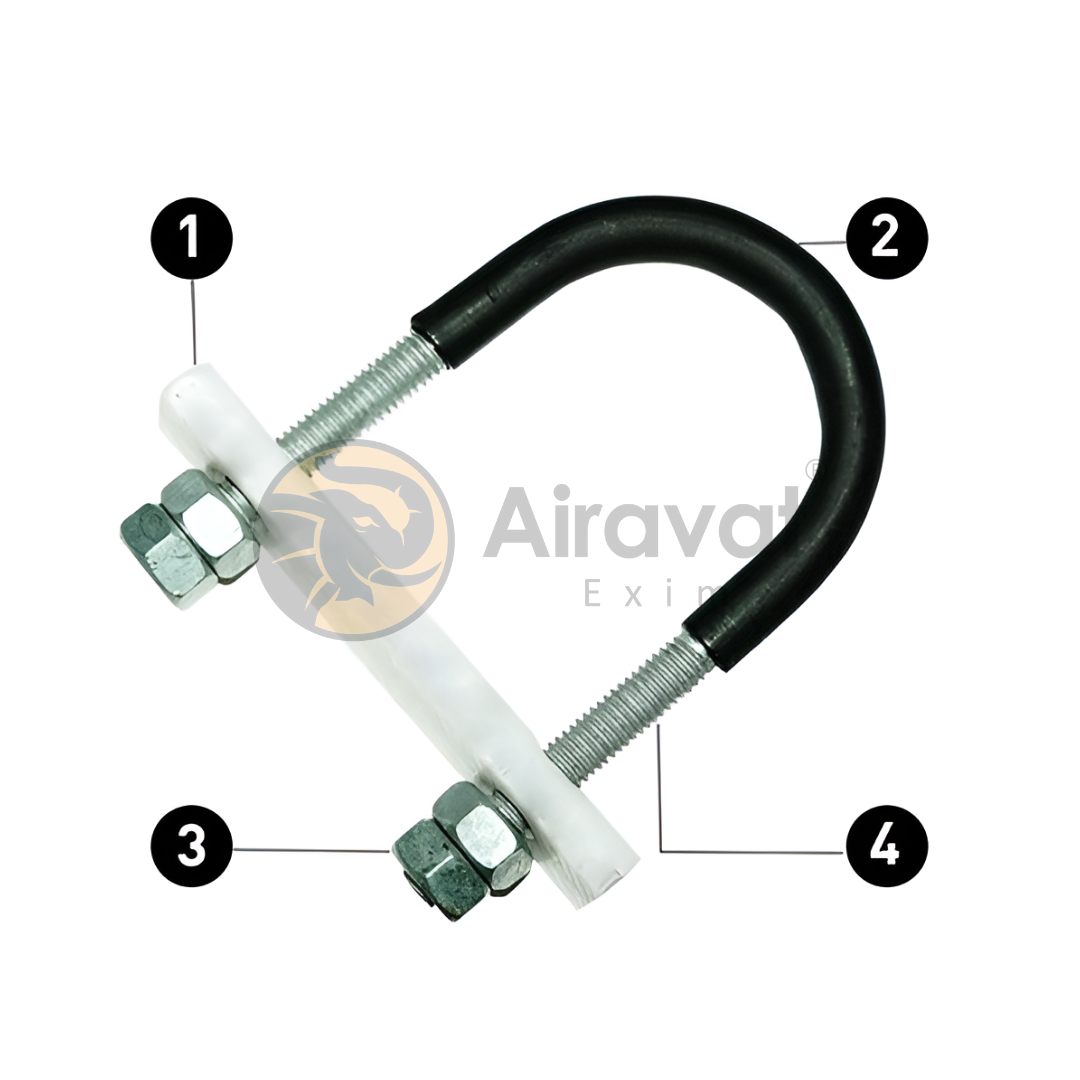

Construction:
Made from premium mild steel or stainless steel, the U Bolt is internally lined with a thick layer of insulated rubber. This rubber lining provides electrical insulation, protects the pipe or conduit surface from damage, and absorbs mechanical vibrations. The rubber insulation is specially formulated to resist oils, chemicals, and temperature variations common in industrial environments.
Usage:
Designed for fastening pipes or conduits in electrical and mechanical installations, the insulated rubber lining ensures safe separation between the metal bolt and the pipe, preventing electrical faults and corrosion due to galvanic action. It also cushions against vibration and shock, extending the lifespan of piping systems and connected equipment.
Application:
U Bolts with insulated rubber are used primarily in environments where electrical insulation and vibration isolation are critical. These bolts secure pipes, conduits, and cables while preventing electrical conductivity and minimizing vibration-related wear, making them ideal for HVAC systems, electrical installations, and industrial piping networks requiring safety and durability.
| Material: | Mild Steel (MS) / Stainless Steel (SS) with insulated rubber lining |
|---|---|
| Rubber: | High-grade EPDM or Neoprene for durability and heat resistance. Non-toxic, heat-resistant rubber with good elasticity and vibration dampening properties, with resistance to oils, chemicals, and temperature fluctuations |
| Finish: | Zinc Plated / Hot-Dip Galvanized steel for enhanced corrosion resistance |
| Thread Size: | Commonly M6 to M54, with custom sizes available |

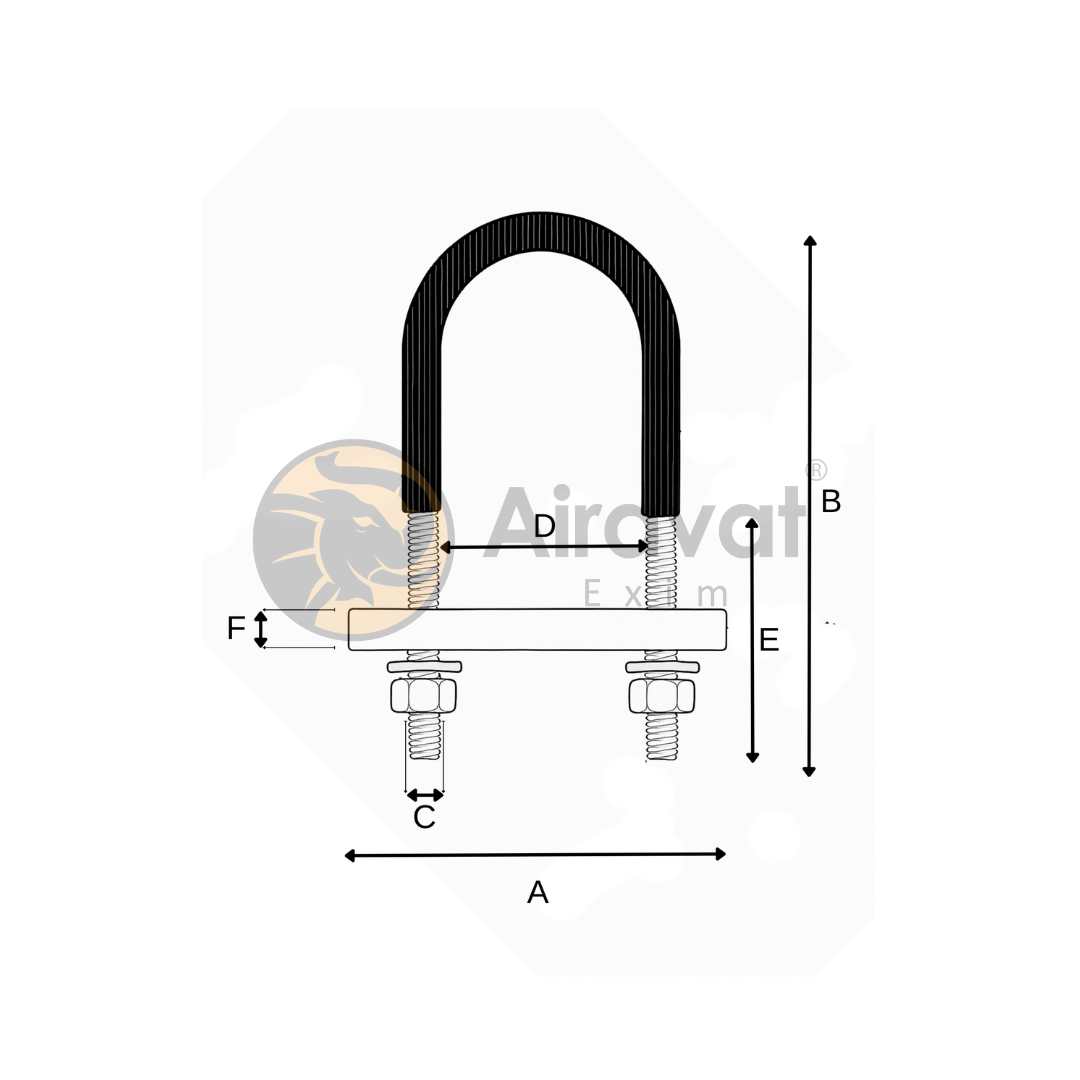

| Dimensions: | Available in various diameters and lengths to suit different pipe sizes |
| Temperature Range: | Suitable for moderate industrial temperature ranges (specific to rubber compound) |
| Features: | Electrical insulation, vibration dampening, corrosion resistance, pipe protection |
| Compliance: | Manufactured according to relevant IS/ASTM standards for fasteners and insulating materials |
