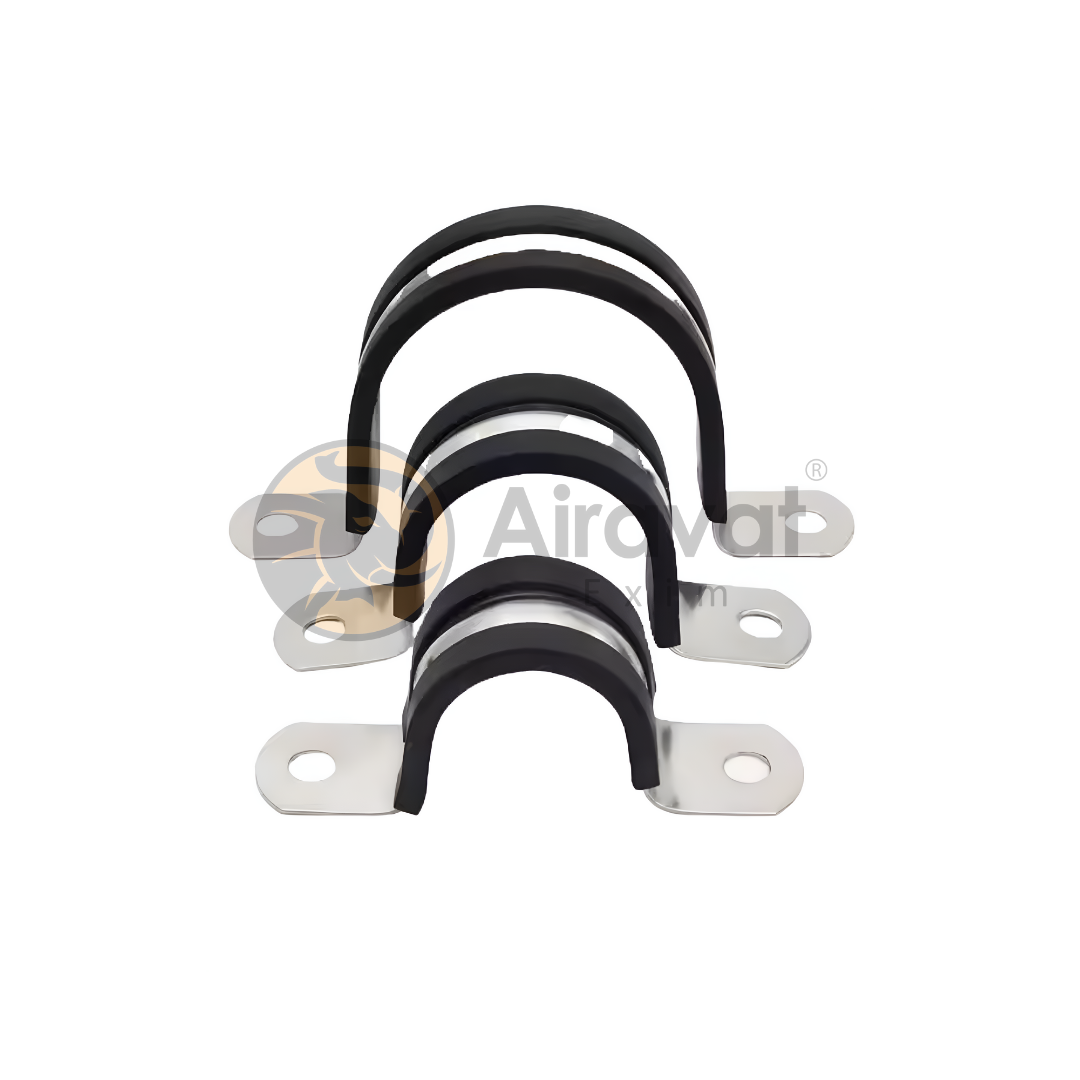

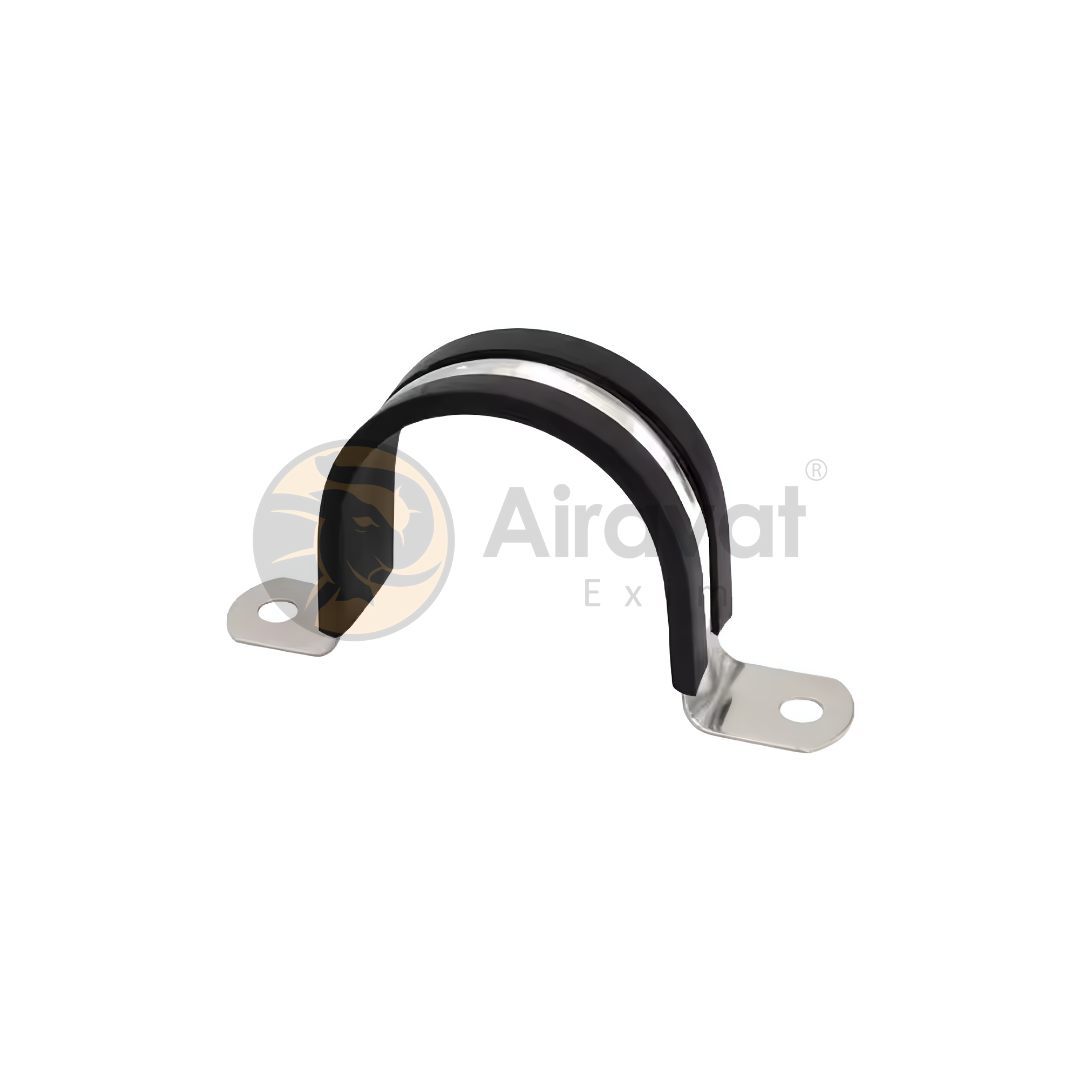

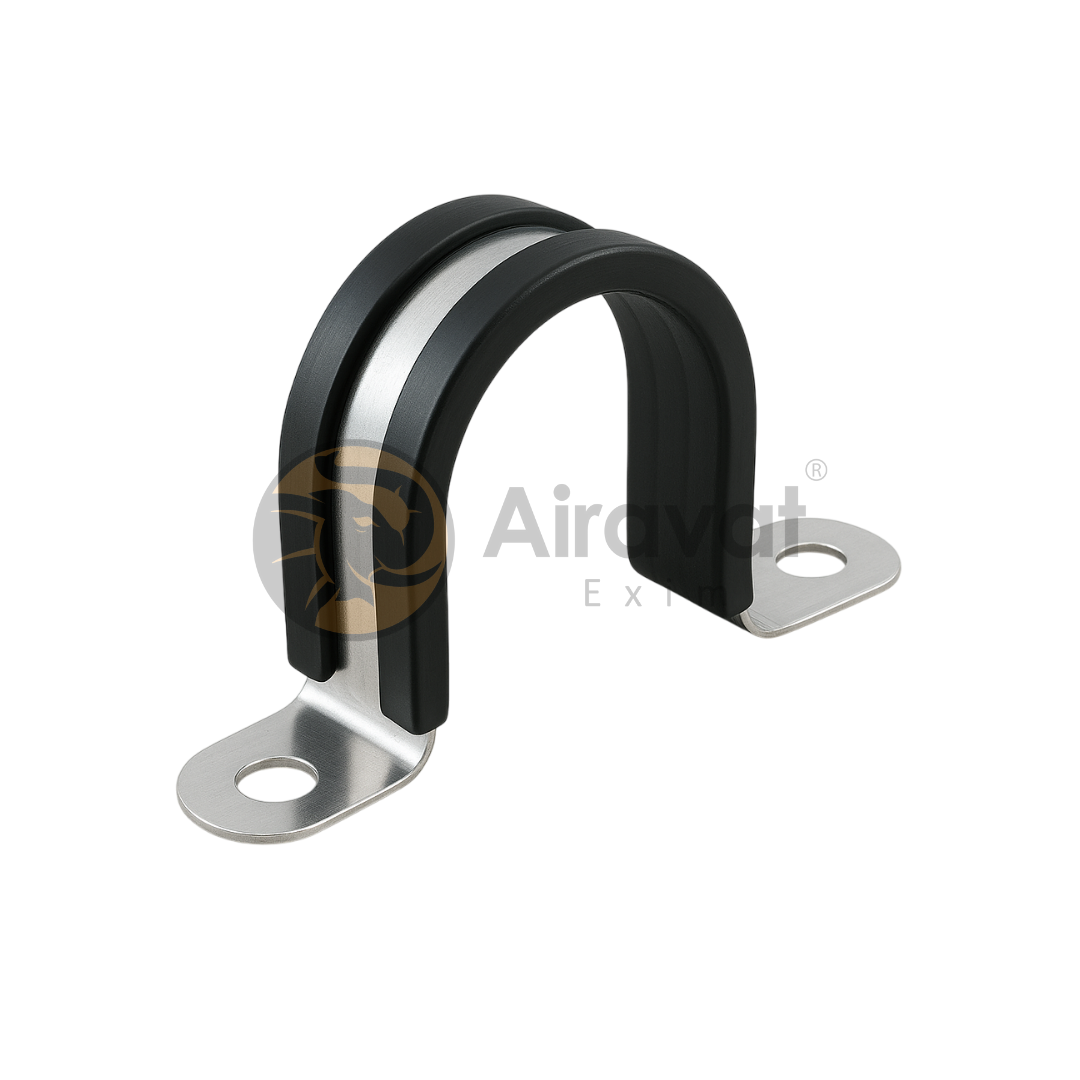

Saddle Clamps with rubber
Construction:
The clamp body is made from mild steel or stainless steel, featuring a semi-circular band with extended flat mounting arms. It includes a high-quality EPDM or PVC rubber lining inside the clamp’s arc, which cushions the pipe, absorbs vibrations, and minimizes noise transmission. The mounting holes are designed for easy bolt/screw fastening to any surface.
Usage:
The rubber-lined saddle clamp is placed over the pipe and bolted to the mounting surface. The lining ensures the pipe is held firmly without abrasion or metal-to-metal contact. Commonly used in environments where sound insulation and pipe stability are essential, such as residential buildings, data centers, hospitals, and clean rooms.
Application:
Used primarily for securing pipes where vibration, noise, or insulation are concerns—ideal for plumbing, HVAC, drainage systems, and industrial pipeline installations. Suitable for both vertical and horizontal pipe mounting in commercial and residential settings.
| Material: | Mild Steel (MS) / Stainless Steel (SS 304/316) |
|---|---|
| Finish: | Zinc Plated / Electro-Galvanized / Hot Dip Galvanized / Powder Coated |
| Rubber Type: | EPDM / PVC |
| Sizes Available: | ½" to 6" (custom sizes available) |
| Mounting: | Slotted or drilled holes for secure anchoring |
| Temperature Resistance: | -20°C to +110°C (depending on rubber type) |
| Compliance: | DIN 4109 (Sound insulation standard), ISO 9001 manufacturing standards |
