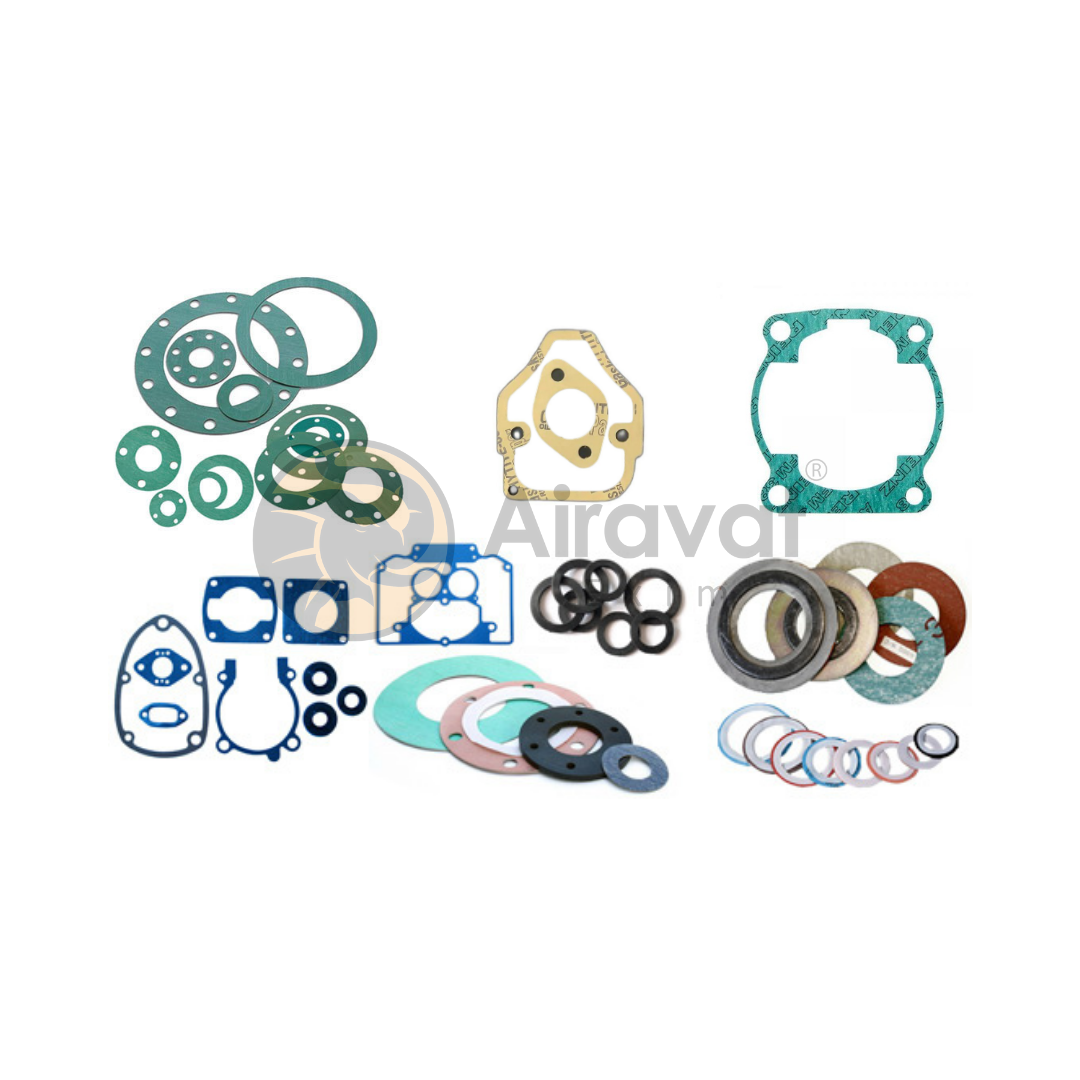

Non-metallic Gasket
Construction:
Manufactured using materials such as:

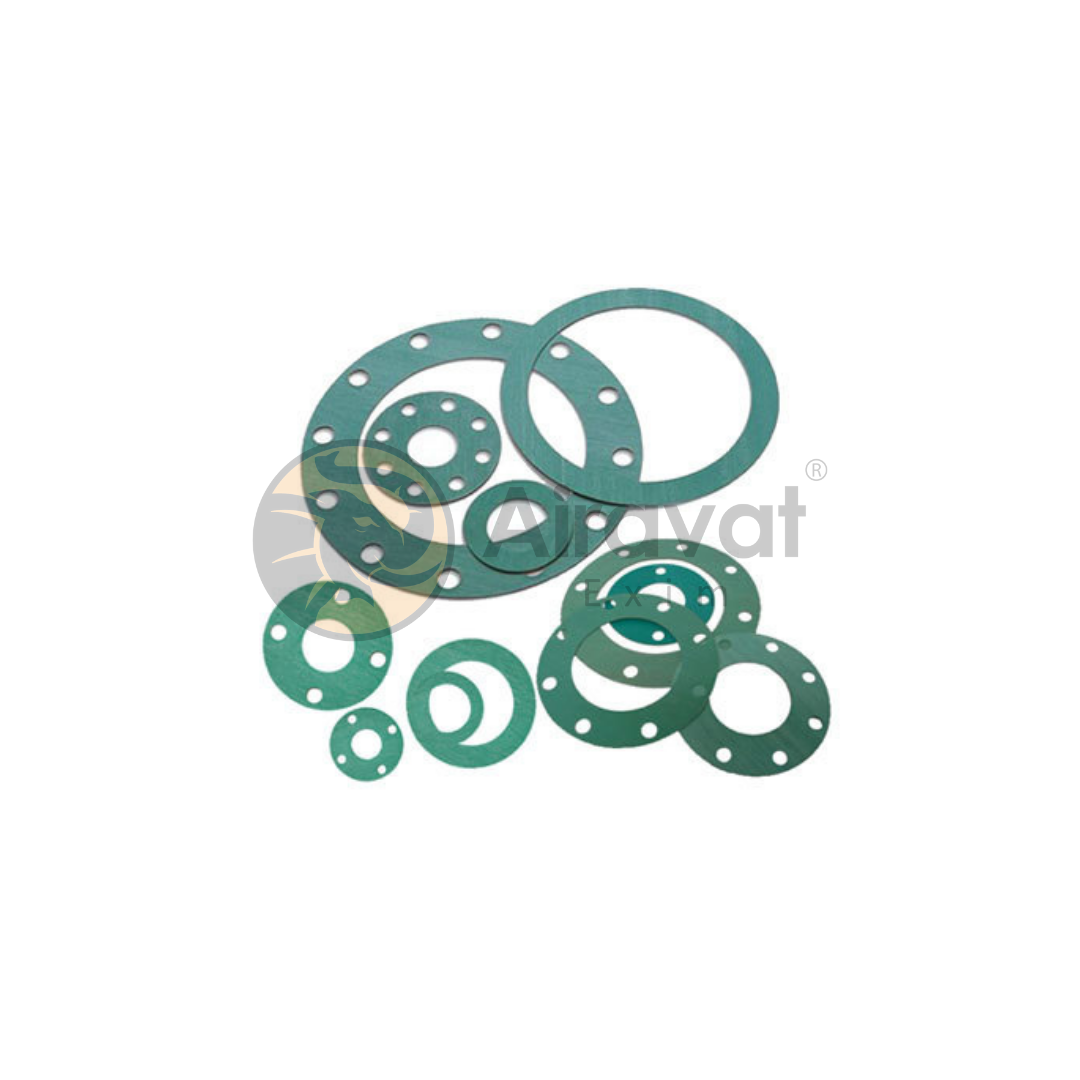

Compressed Non-Asbestos Fiber (CNAF)
PTFE (Teflon)
EPDM / NBR / Neoprene Rubber
Graphite
CAF (Compressed Asbestos Fiber) – upon special request
Can be die-cut or molded as per customer specification
Offered in various thicknesses (0.5 mm to 5 mm or custom)
Usage:
Used between flanges, covers, or two mating surfaces to prevent leakage of gases or liquids
Suitable for pipe joints, pumps, valves, heat exchangers, tanks, and pressure vessels
Selected based on media type, temperature, and pressure requirements
Application:
Non-metallic gaskets are widely used for sealing applications in industries such as chemical processing, pharmaceuticals, food and beverage, water treatment, refineries, and power plants. They are ideal for applications involving low to medium pressure and temperature environments, particularly where chemical compatibility is crucial.
| Material Options: | CNAF (General chemical & steam resistance) PTFE (High chemical resistance and non-stick properties) Graphite (Excellent for high temperature up to 450°C) EPDM / NBR (Good for water, oil, and mild chemicals) |
|---|---|
| Sizes: | Custom-cut to match flange standards (ASME / DIN / IS) Available in standard sheet sizes: 1500 x 1500 mm, 1500 x 2000 mm |
| Temperature Range: | PTFE: up to 260°C Graphite: up to 450°C Rubber: 90–130°C depending on compound |
| Pressure Rating: | Up to 100 bar depending on material and thickness |
| Thickness Range: | 0.5 mm to 5 mm (standard options: 1.5 mm, 2 mm, 3 mm) |
